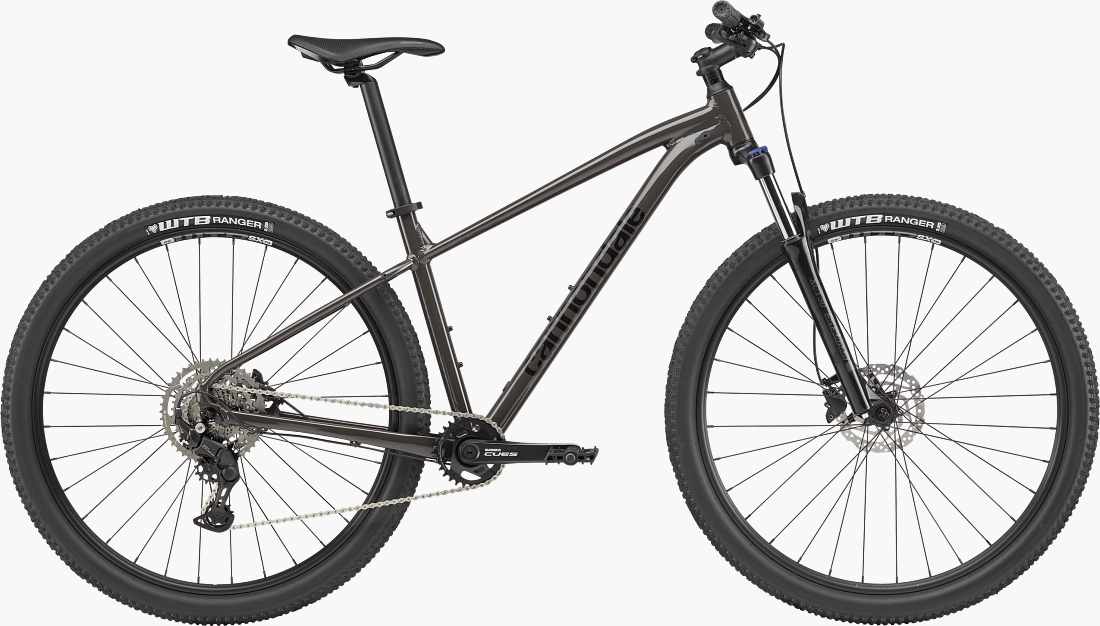

Cannondale trail 6

Details

• Platform

  Trail

• Model Name

  Trail 6

• Model Code

  C26603U

Frameset

• Frame

  SmartForm C3 Alloy, SAVE, 1-1/8″ headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA-73, rear rack mounts, KickFlip hidden 18mm 2-bolt kickstand mount

• Fork

  SR Suntour XCT 30, 100mm, coil, 42mm offset (27.5″) 46mm offset (29″)

• Headset

  Semi-Integrated, 1-1/8″

Drivetrain

• Rear Derailleur

  Shimano Acera

• Shifters

  Shimano Alivio, 9-speed

• Chain

  KMC X9, 9-speed

• Crank

  Prowheel, 36/22

• Rear Cogs

  Shimano HG200, 11-36, 9-speed

• Bottom Bracket

  Sealed cartridge bearing, square taper

Brakes

• Brakes

  Tektro M275 hydraulic disc, 160/160mm rotors

• Brake Levers

  Tektro hydraulic disc

Wheels

• Rims

  WTB SX19, 32h

• Spokes

  Stainless Steel, 14g

• Tire Size

  2.1

• Wheel Size

  29

• Hubs

  (F) Shimano HB-TX505, QR / (R) Shimano FH-TX505, QR

• Tires

  WTB Ranger Comp, 29×2.25″ (27.5×2.25″ – XS, SM), DNA Compound

Components

• Handlebar

  Cannondale Riser, 6061 Alloy, 25mm rise, 8° sweep, 6° rise, 720mm

• Stem

  6061 Alloy, 31.8, 7°

• Grips

  Cannondale Dual-Density

• Saddle

  Cannondale Stage 3

• Seatpost

  Cannondale 3, 6061 Alloy, 31.6x350mm (XS-SM), 400mm (MD-XL)
